Automatic LED Tunnel Drying System

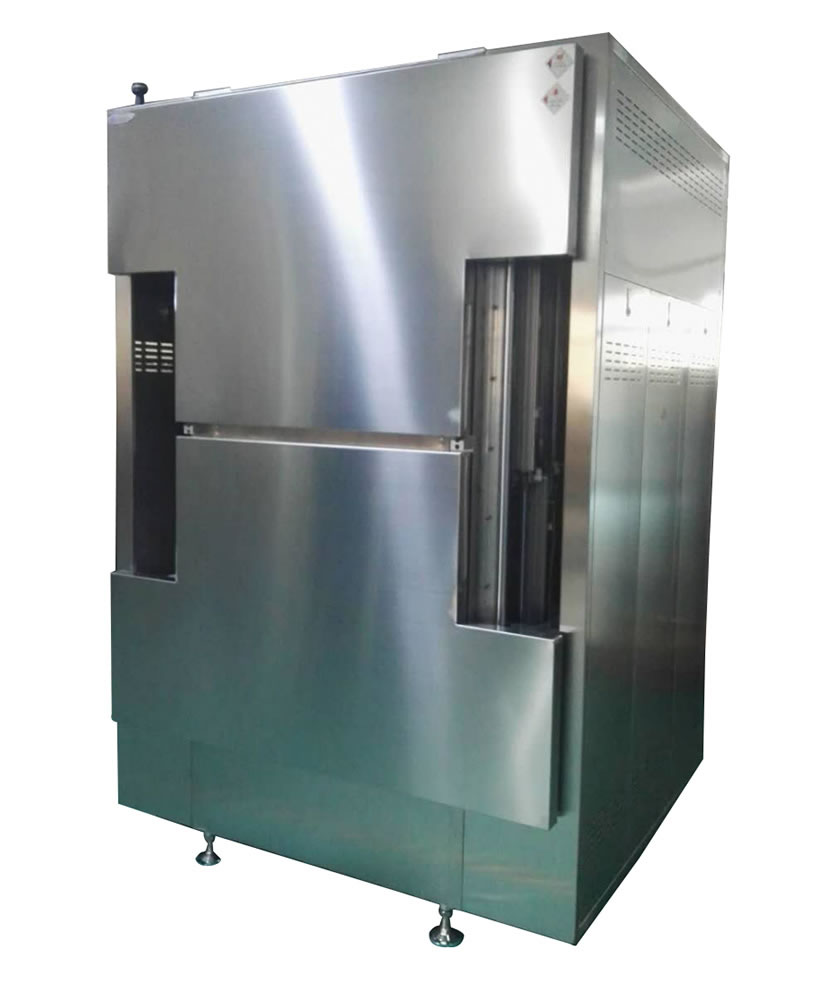

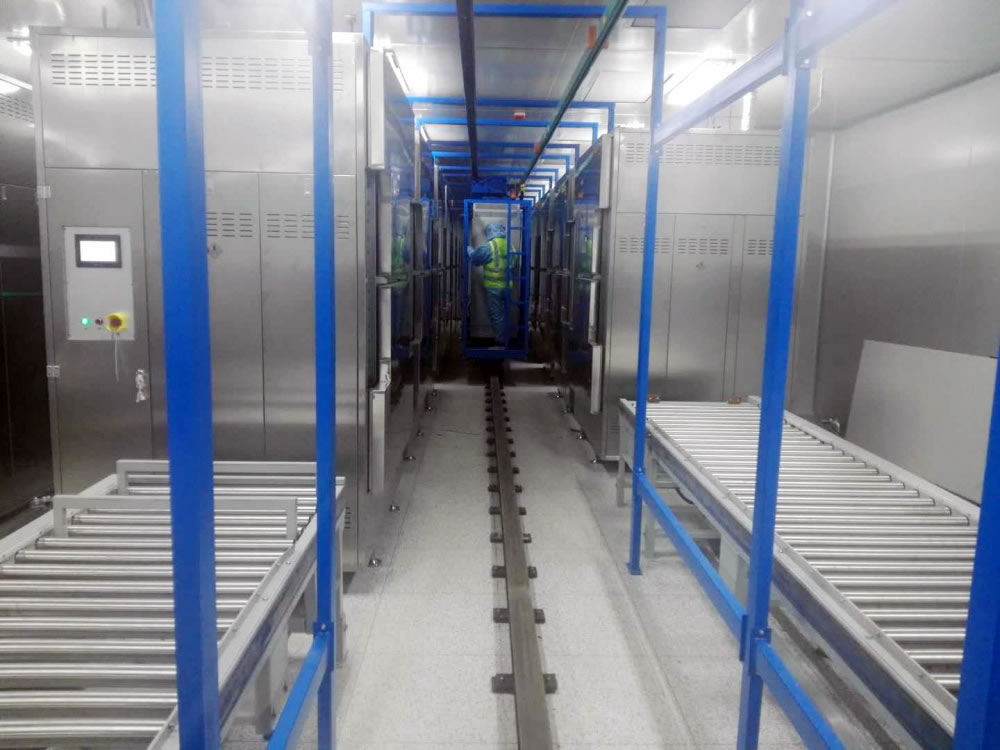

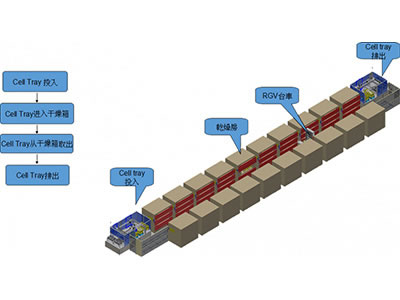

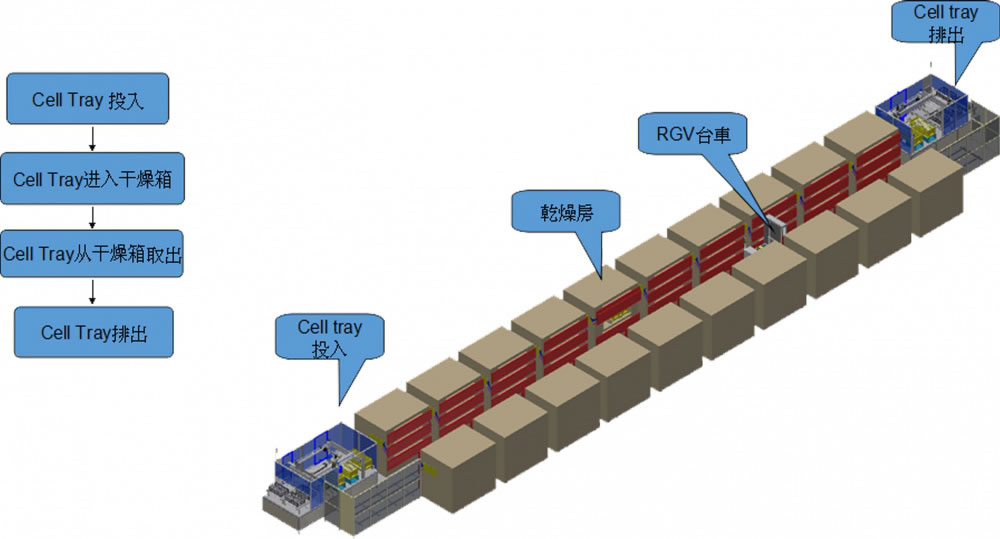

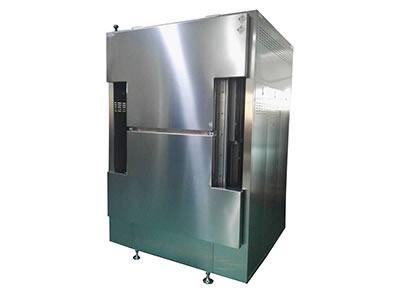

Utilizing an automatic door opening and auxiliary accessories, the automatic stacking baking oven is designed to solve problems numerous customers find in a variety of large scale ovens through the use of a fully automated control process. It works in conjunction with an RGV rail cart for fully automatic, unmanned operations, including automatic loading and unloading, oven inlet and outlet, and automatic baking.

• Size: height 2500mm, width 1740mm, depth1500mm.
• Working chamber size: height 900mm, width 720mm, depth 780mm*2 layers.
• Temperature range: Room temperature +15 °C ~ 200 °C.
• Working temperature: 150 ° C.
• Heating rate: room temperature to 150 ° C ≤ 25 minutes (empty loading state).
• Temperature control accuracy: ±1 °C.
• Temperature uniformity: ≤±2% °C (empty planting state)
• Power supply: 380V/50HZ (three phase)
• Heating power: 18KW
• Other: The number of ovens is planned according to the capacity
