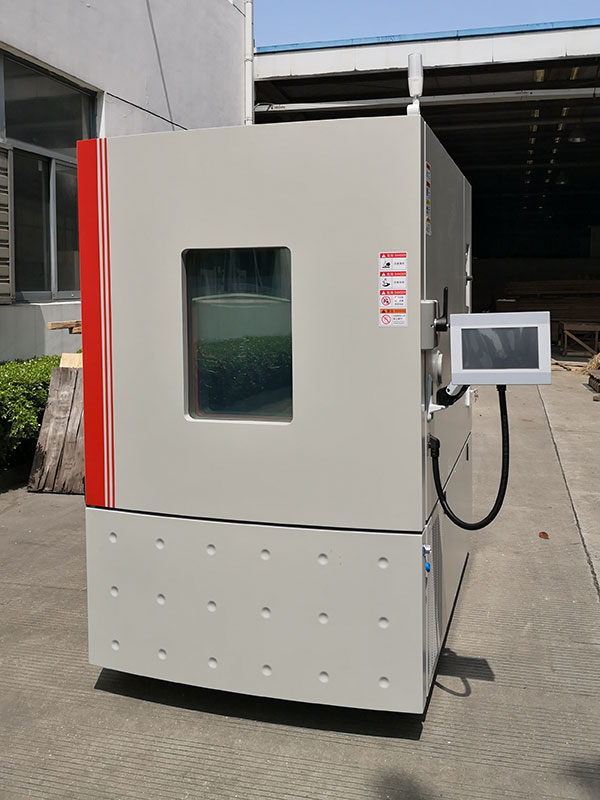

Rapid Temperature Change Humidity Test Chamber -70℃ ~+180℃/10%~98%RH/5℃/min~15℃/min | ||||||
Specifications & Model | ||||||
Internal Volume | 500L | 1,000L | 1,500L | 2,000L | ||
Overall Dimensions | Internal Dimensions (W×D×H) | 850×700×850mm | 1,000×1,000×1,000mm | 1,150×1,150×1,150mm | 1,200×1,400×1,200mm | |
External Dimensions (W×D×H) | 1,100×2,605×2,140mm | 1,250×2,995×2,260mm | 1,900×3,800×2,000mm | 2,000×3,715×2,200mm | ||
Performance | Temperature Range | -70℃~+180℃ | ||||
Fluctuation Range of Temperature | ≤+0.5℃ (no-load steady state) | |||||
Temperature Deviation | ≤+2℃ (no-load steady state) | |||||
Temperature Uniformity | ≤2℃ (no-load steady state) | |||||
Humidity Range | 10%RH~98%RH (No heat source during damp heat test) | |||||
Relative Humidity Deviation | ≤±3%RH(>75%RH,no-load steady state) ≤±5%RH(≤75%RH,no-load steady state) | |||||
Relative Humidity Fluctuation | ≤±3%RH | |||||
Wind Speed at Central Point | ≤1.7m/s (equipped with adjustable wind speed inverter) | |||||
Temperature and Humidity Control Mode | Hot gas bypass technology | |||||
Temperature Change Rate | Heating rate:1~15℃/min (-55 ℃ ~+85 ℃,average throughout,measured at the air outlet,no load) Cooling rate:1~15℃/min (+85℃ ~-55 ℃,average throughout,measured at air outlet,no load) | |||||
Constitution | Shell mMterial | Cold-rolled steel sheet with plastic powder coating | ||||
Test Area Materials | SUS304 stainless steel with mirror finish,the gaps are fully welded by TIG (tungsten inert gas arc welding) | |||||
Heater | Nichrome wire heater | |||||
Cooler (Dehumidifier) | Mechanical dehumidification | |||||
Circulating Fan | Axial fan | |||||
Air Dryer | Adsorption of refrigeration drying air | |||||
Water Supply | Water Supply Mode | Pumped water supply system and manual water filling | ||||
Water Supply Tank | 24L | |||||
Refrigeration System | Refrigerating Machine | Piston compressor | ||||
Refrigerant | Environment-friendly refrigerant HFC R404a + R23 | |||||
Equipment Requirements | Ambient Conditions | +5~+30℃ /relative humidity≤85%RH | ||||
Power Supply | 380V±38V/50Hz+N+G | |||||
Total weight of tank | Approx. 1,500kg | Approx. 2,000kg | Approx. 2,500kg | Approx. 3,000kg | ||
Applicable standards | GB/T 2423.1-2008 Environmental Testing for Electric and Electronic Products-Part 2:Test Methods-Tests A:Cold GB/T 2423.2-2008 Environmental Testing for Electric and Electronic Products-Part 2:Test Methods-Tests B:Dry Heat GB/T 2423.3-2008 Environmental Testing for Electric and Electronic Products-Part 2:Testing Method- Test CaB:Damp Heat,Steady State GB/T 2423.4-2008 Environmental Testing for Electric and Electronic Products-Part 2:Test Method-Test Db:Damp Heat,Cyclic (12h+ 12h cycle) GJB 150.3A-2009 Laboratory Environmental Test Methods for Military Materiel-Part 3:High Temperature Test GJB 150.4A-2009 Laboratory Environmental Test Methods for Military Materiel-Part 4:Low Temperature Test | |||||
Applicable Measurement Standard | JJF 1270-2010 Calibration Specification for Temperature/Humidity/Vibration Combined Environmental Testing System (the temperature and humidity indicators in the standard) |
