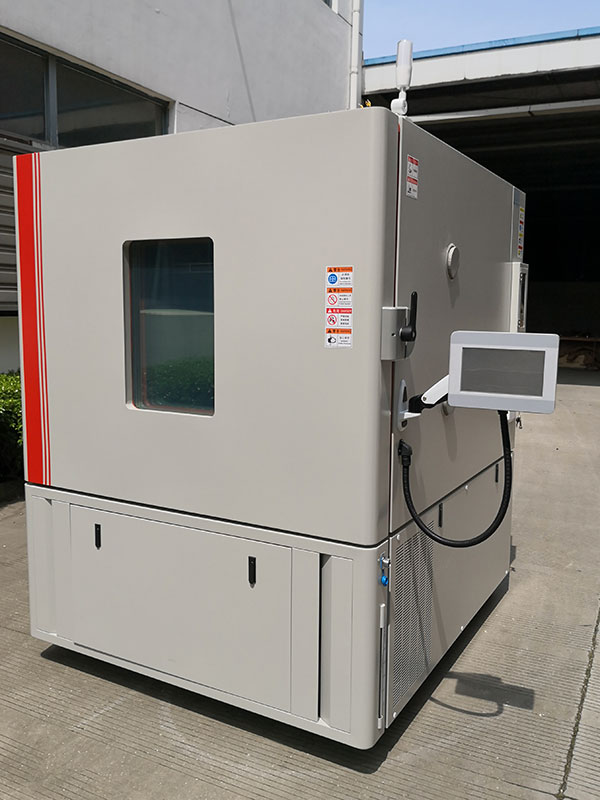

High Low Temperature and Humidity Test Chamber

Features

The refrigeration system includes a compressor from a well-known overseas brand with high-quality core components.
The hot gas bypass technology is used to ensure economic and long-term stable running of the test chamber.
The built-in lighting system is well matched with large multi-layer thermal insulation high-transmission observation window, which contributes to excellent visibility in the test space.
Patented external pressure humidification system well matched with imported high-quality steam solenoid valve ensures high humidification efficiency and a wide range of damp heat curve.
Linear conversion of various temperature and humidity algorithms brings excellent equipment performance.
The stainless steel liner with mirror finish is high-end, stylish and rust resistant.
The environmental test chamber can control both temperature and humidity within a wide range.
Relative humidity: 15%~95%RH (no heat source in working space during damp heat test).
Temperature range:10℃ ~95℃ (low temperature auxiliary system can be added to satisfy the requirements for low temperature).

Technical Parameters

High and Low Temperature and Humidity Test Chamber -70℃ ~+180℃ /10%~98%RH/2℃/min
Specifications & Model			YTH-2500	YTH-500D	YTH-1000D
Internal Volume			250L	500L	1,000L
Overall Dimensions	Internal Dimensions (W×D×H)		550×600×750mm	800×750×850mm	1,000×1,000×1,000mm
	External Dimensions (W×D×H)		800×1,500×1,650mm	1,050×1,830×1,850mm	1,250×2,080×2,050mm
Performance	Temperature Range		-70℃~+180℃ (+210℃ can be achieved,but it is not included in indicator measurement)
	Fluctuation Range of Temperature		≤+0.5℃ (no-load steady state)
	Temperature Deviation		≤+2℃ (no-load steady state)
	Humidity Range		10%RH~98%RH (10℃~+95℃)
	Relative Humidity Deviation		≤±3%RH(>75%RH,no-load steady state) ≤±5%RH(≤75%RH,no-load steady state)
	Fluctuation Range of Relative Humidity		≤±3%RH
	Temperature and Humidity Control Mode		Hot gas bypass technology
	Temperature Change Rate		Heating rate:Not less than 2℃/min (-55 ℃~+85℃,average value in the entire process,measured at the air outlet,no load) Cooling rate:Not less than 2℃/min (+85℃~-55℃,average value in the entire process,measured at air outlet,no load)
Constitution	Shell Material		Cold-rolled steel sheet with plastic powder coating
	Material of Test Area		SUS304 stainless steel with mirror finish,the gaps are fully welded by TIG (tungsten inert gas arc welding)
	Heater		Nichrome wire heater
	Cooler (Dehumidifier)		Mechanical dehumidification
	Circulating Fan		Centrifugal fan
	Air Dryer (Optional)		Decreasing dew point by adsorption freezing drying air
	Water Supply	Water Supply Mode	Automatic and manual water supply
		Water Supply Tank	24L
	Refrigeration System	Refrigeration Mode	Two-stage cascade refrigeration
		Refrigerating Machine	Piston compressor
		Refrigerant	Environment-friendly refrigerant HFC R404a+R23
Equipment Requirements	Ambient Conditions		+5~+30℃/relative humidity≤85%RH
	Power Supply		380V±38V/50Hz+N+G
Total Weight of Tank			Approx. 600kg	Approx. 800kg	Approx. 1,000kg
Applicable Standards			GB/T 2423.1-2008 Environmental Testing for Electric and Electronic Products-Part 2:Test Methods-Tests A:Cold GB/T 2423.2-2008 Environmental Testing for Electric and Electronic Products-Part 2:Test Methods-Tests B:Dry Heat GB/T 2423.3-2008 Environmental Testing for Electric and Electronic Products-Part 2:Testing Method- Test CaB:Damp Heat,Steady State GB/T 2423.4-2008 Environmental Testing for Electric and Electronic Products-Part 2:Test Method-Test Db:Damp Heat,Cyclic (12h+ 12h cycle) GB/T 2423.34-2008 Environmental Testing for Electric and Electronic Products-Part 2:Test Methods-Test Z/ AD:Composite Temperature/Humidity Cyclic Test GJB 150.3A-1986 Environmental Test Methods for Military Equipment High Temperature Test GJB 150.4A-1986 Environmental Test Methods for Military Equipment Low Temperature Test GIB 150.9A-1986 Environmental Test Methods for Military Equipment Damp Heat Test
Applicable Measurement Standard			JJF 1101-2003 Calibration Specification for the Equipment of the Environmental Testing for Temperature and Humidity

Notes:

The range of temperature and humidity above is the results tested at an ambient temperature of 20℃ (room temperature) or cooling system water temperature of 25℃ and with no load.
Measurement was made as per the test method of IEC 60068-3-6: 2001/GB/T 2424.6-2006/JMT K09: 2009 based on the effective space formed with a distance of 1/10 to each edge in the internal box.
The pictures and specifications above are for reference only. The specific specification is subject to quotation.
