- Taiwan Lithium Battery Vacuum Drying Oven
UER Technology Corporation(Taiwan)
- Case time: April, 2015

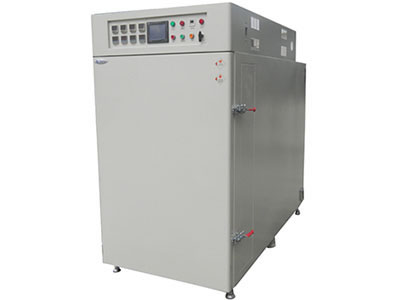

- Product: Air Blast Vacuum Oven
- Cooperation:
The client came to us looking for a vacuum oven with multiple chambers. To reach high efficiency, a 100 Pa vacuum unit is needed. To accomplish this, we designed a three layered vacuum drying oven. The client was extremely satisfied with the oven and ordered 5 more vacuum drying ovens the following year to expand their production.
Basic properties of custom vacuum drying oven:
- Heater position: Around chamber
- Exhaust port: Side face, solenoid valve
- Air inlet port: Filling solenoid valve
- Doors: A set of doors at both side
- Insulating material: Rubber silicone high temperature sealing ring
Parameters of custom drying oven:
- Model: SBVO-200APNGS
- Internal dimensions (L×W×H) : 1300 ×580×900mm
- Heat insulator thickness: 90 mm
- Operating temperature range: Room temperature +15 ℃ to 150 ℃
- Temperature accuracy: ±1 ℃
- Temperature distribution: ±3 ℃ (2 hours when stable at 120 ℃, no load)
- Temperature increase time: Within 120 minutes from 25 ℃ to 120℃ (no load)
- Vacuum degree: No less than 10 Pa
- Average air leakage per 24h: ≤20Pa/h
- Power source: AC380V, 3-phase 4-wire, 50 Hz
- Heater capacity: 20 Kw
- Air blast power: 370W
- Maximum current: 50A
