- Norway Lithium Battery Vacuum Drying Oven
Norautron AB(Norway)
- Case time : April, 2017
- Product: Lithium Battery Vacuum Drying Oven
- Cooperation:
An oven for battery drying was needed to remove moisture from the electrode sheet of the batteries. A large volume is needed according to the size of the electrode sheet. To fulfill such demands, a series of detailed tests like water content, temperature increase rate, bake time, and workspace testing are completed. Then the custom vacuum drying oven is produced once these needs are addressed.

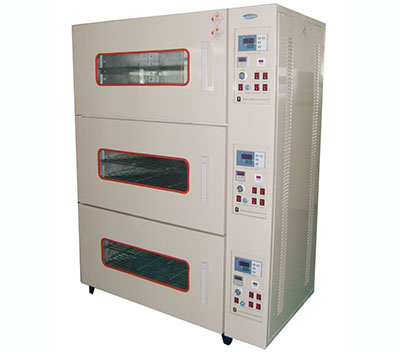

Basic properties of the custom vacuum drying oven:
- Chamber structure: Three chambers
- Heater position: Both sides and bottom of chamber
- Exhaust port: One port for three chambers, solenoid valve
- Air inlet port: Front, Manual, filling solenoid valve
- Oven doors: Three sets of doors at each side with observation windows
- Insulating material: Rubber silicone high temperature sealing ring
- Vacuum gauge: Digital vacuum gauge
Parameters of the custom drying oven:
- Model: SBVO-03DA
- Internal dimensions (L×W×H) : 300 ×800×600mm
- Operating temperature range: Room temperature +15 ℃ to 150 ℃
- Temperature fluctuation: ±2 ℃
- Temperature increase time: Within 60 minutes from 25 ℃ to 150℃ (no load)
- Vacuum degree: No less than 100 Pa
- Average air leakage per 24h: ≤0.5kPa/h
- Outside surface temperature: Room temperature+25 ℃
- Power source: AC380V, 3-phase 4-wire, 50 Hz
- Heater capacity: 4.5 Kw ×3
- Maximum current: 40A
