Fujikura Rubber Ltd.(Japan)
  • Case time: From 2011 to 2016
  • Product: Rubber Specialized Oven for Secondary Vulcanization
  • Cooperation:

    A program controlled temperature adjustment oven is required to complete the secondary vulcanization process in rubber processing. To reach the maximum temperature of 300 ℃ and achieve large scale production output, an enlarged drying oven is needed to facilitate the movement of the handcar. A high power heater with hot air circulation is also needed. Therefore, a floor-standing PLC controlled drying oven was designed to satisfy the client’s requirements.

Parameters of custom double doors drying oven:
  • Model: SGTG-TG-100P
  • Internal dimensions (L×W×H) : 1000 ×1000×1000mm
  • Heat insulator thickness: 90mm
  • Operating temperature range: Room temperature +15 ℃ to 150 ℃
  • Temperature accuracy: ±1℃
  • Temperature fluctuation: ≤±1 ℃(at 200 ℃)
  • Temperature distribution: ≤±3 ℃(at 200 ℃, no load)
  • Temperature increase time: Within 40 minutes from 25 ℃ to 200℃ (no load)
  • Temperature controller: PID and SSR module
  • Timer: 1 minute to 99 hours 99 minutes
  • Power source: AC380V, 3-phase, 50 Hz
  • Heater capacity: 750 w ×2
  • Maximum current: 20A
  • Circuit breaker: 30A

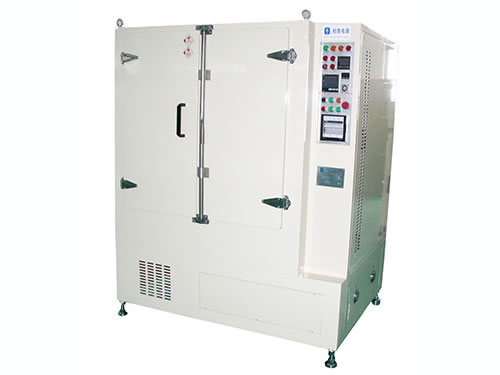

Japan Rubber Hot Air Oven
