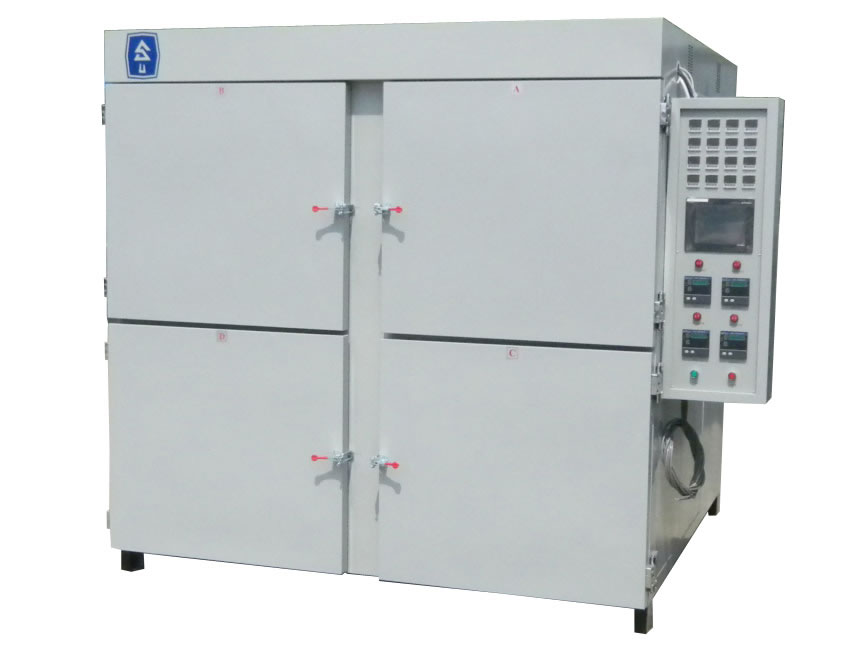

Vacuum Oven (Four Shelf)

Technical Parameters (can be measured at an ambient temperature of +5 to +35 °C)
Vacuum Oven (Four Shelf)
Structure
  • Working chamber size:590mm height, 660mm width, 1275mm depth, 4 chambers.
  • Dimensions: Subject to the drawings.
  • Insulation thickness: 90mm.
  • Supporting foot: 100mm.
  • Heater position: Around the inside of the cavity
  • Pumping port position: Four chambers are concentrated in one suction port and vacuuming, respectively controlled by solenoid valves.
  • Venting port position: Equipped with inflatable solenoid valve.
  • Door opening method: 4 single doors.
  • Control box position: Right side.
  • High temperature resistant sealing ring made using slicone rubber.
  • Equipped with digital vacuum gauge.
  • Each chamber is equipped with a stainless steel trolley.
Technical Parameters
  • Working temperature: room temperature +15 ° C ~ 200 ° C
  • Temperature accuracy: ±1℃
  • Temperature fluctuation: ±1℃
  • Heating time: ≤120min(empty box,25℃~150℃)
  • Temperature control method: PID adjustment
  • Vacuum degree: ≥100Pa (0.0999MPa)
  • Average air leakage in 24 hours: 0.3kPa/h
  • Housing surface temperature: ≤ room temperature +25 ° C
Electrical Capacity
  • Power supply: AC380V 3-phase 4-wire 50Hz
  • Heating power: 8KW*4
  • Blast power: 370W*4
  • Maximum current: 20A*4
  • Air switch capacity: 100A
Protection Devices
  • Air switch (prevent overcurrent and short circuit)
  • Overcurrent protection
  • Over temperature protection, over temperature alarm
Functional Requirements
  • Q series substrate: The equipment is program controlled and features an 8 inch colorful LCD touch screen display.
  • Equipped with 4 electromagnetic valves, vacuuming, holding pressure, and inflating processes are all automatic and program controlled.
  • Users can freely adjust the vacuum degree and temperature, and automatically maintain them under a specific temperature and vacuum degree range.
  • Equipment operation processes such as vacuuming, holding pressure and inflation are automatically PLC controlled.
