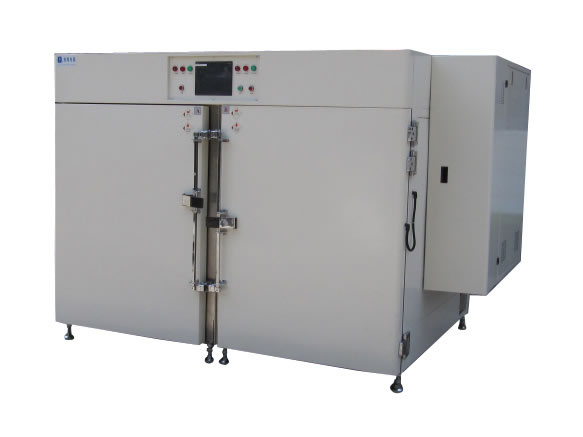

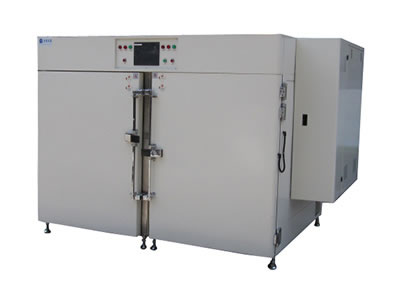

Vacuum Oven (Double Shelf)

  • Vacuum Oven (Double Shelf)
  • Vacuum Oven (Double Shelf)
Technical Parameters (can be measured at an ambient temperature of +5 to +35 °C)
Structure:
  • Working chamber size: 850mm height, 800mm width, 1600mm depth; Effective working size: 590mm height, 660mm width, 160mm depth, 2 chambers.
  • Dimensions: Subject to the drawings.
  • Insulation thickness: 90mm.
  • Supporting foot: 100mm.
  • Heater position: Around the inside of the cavity
  • Pumping port position: Two chambers are concentrated in one suction port and vacuumed, respectively controlled by solenoid valves.
  • Venting port position: Equipped with inflatable solenoid valve.
  • Door opening: 2 single doors.
  • Control box position: Right side.
  • High temperature resistant sealing ring made using silicone rubber
  • Equipped with digital vacuum gauge.
  • Each chamber is equipped with a stainless steel cart with casters
Technical Parameters
  • Working temperature: room temperature +15 ° C ~ 180 ° C
  • Temperature accuracy: ±1℃
  • Temperature uniformity: ±2℃
  • Heating time: ≤40min(empty box,25℃~150℃)
  • Temperature control method: PID adjustment
  • Vacuum degree: ≥100Pa (0.0999MPa)
  • Average air leakage in 24 hours: 0.5kPa/h
  • Housing surface temperature: ≤ room temperature +25 ° C
Electrical Capacity
  • Power supply: AC380V 3-phase 4-wire 50Hz
  • Heating power: 12KW*2
  • Fan power: 370W*2
  • Maximum current: 20A*2
  • Air switch capacity: 50A
Protection Devices
  • Air switch (prevent overcurrent and short circuit)
  • Overcurrent protection
  • Over temperature protection, over temperature alarm
Functional Requirements
  • Program controlled colorful LCD touch screen display settings
  • Equipped with 2 electromagnetic valves, pumping, vacuum holding and inflation are automatic and program controlled.
  • Users can freely adjust the vacuum degree and temperature, and maintain them under a specific temperature and vacuum degree range condition.
  • Equipment operation processes, including vacuum, holding pressure, and inflation are PLC controlled.
