High-Temp Vacuum Oven

  • High-Temp Vacuum Oven
  • High-Temp Vacuum Oven
  • High-Temp Vacuum Oven

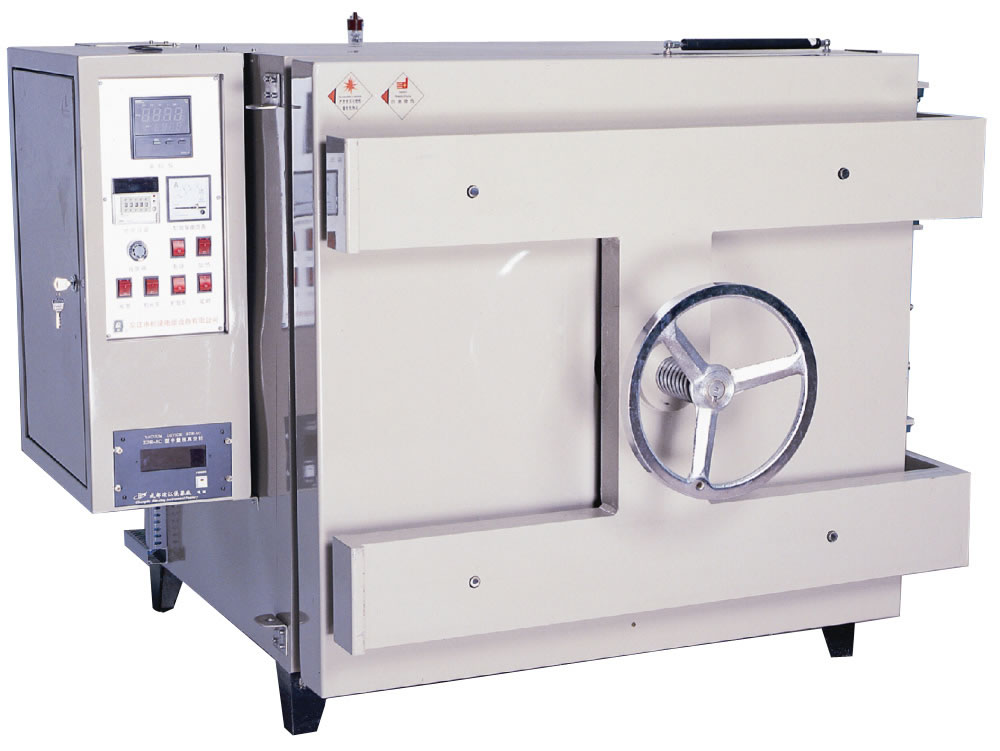

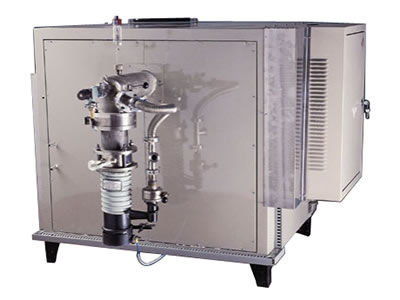

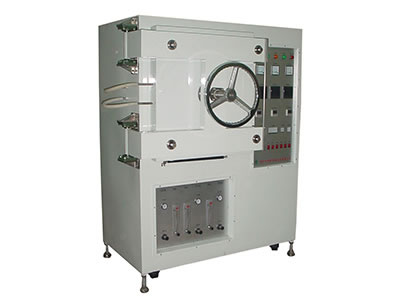

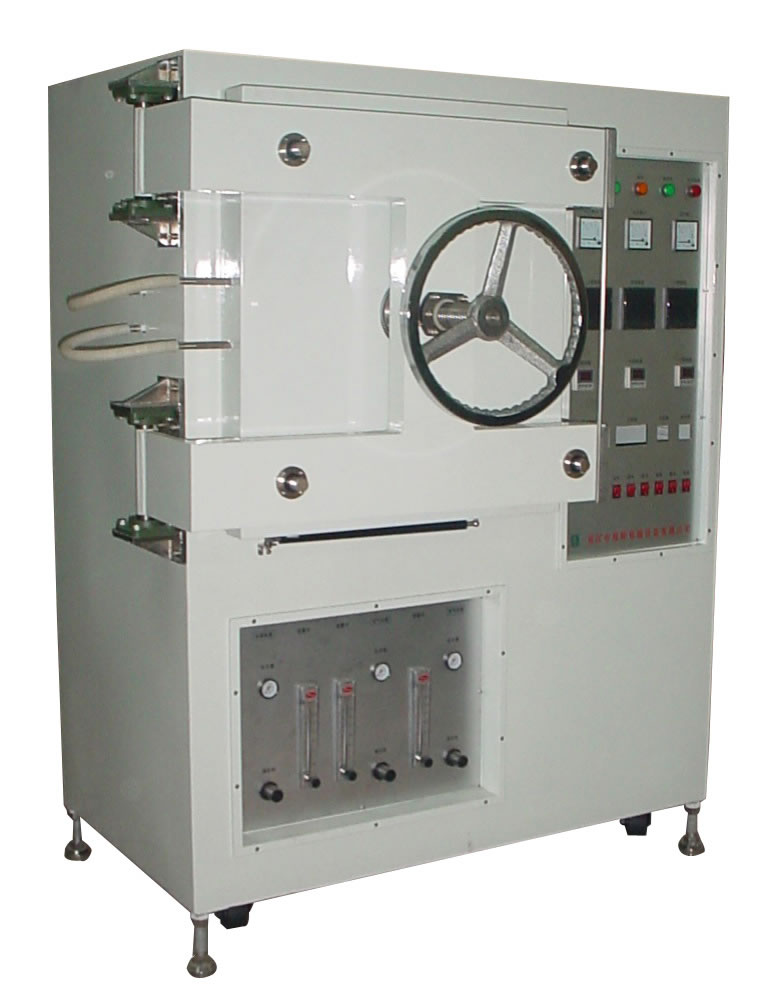

This oven is composed of the vacuum pump, housing, working chamber, electric heater and temperature control system. It is designed to work under designated temperature and vacuum conditions, and is used to vacuum dry materials and components in pharmaceutical, chemical, electronics, instrument, instrumentation and other industries. The housing is made of a painted sheet steel, with a bright, beautiful color. It uses heat resistant silicone rubber as the door’s sealing, and is equipped with awater cooling system. The working chamber is made of a stainless steel plate with electric heating in order to ensure a better uniformity. Glass fiber insulation materials are placed between the working chamber and the housing, and the digital display temperature controller switch and other electrical control components are set on the left side of the body. The high vacuum pumping component is at the back, and the composite vacuum gauge is at the top.

Parameters
Model Voltage (V) Heating Power (kw) Temperature Range (℃) Vacuum Degree (Pa) Air Leakage (kPa/h) Internal Dimensions (H*W*D)(cm)
SHOV-1 380 4.5 0~450 4*10-2 ≤1 45*45*45
SHOV-2 380 6 0~450 4*10-2 65*65*65
